3、grach基础流程

grach基础流程

• 定义状态
• 定义节点
• 定义边

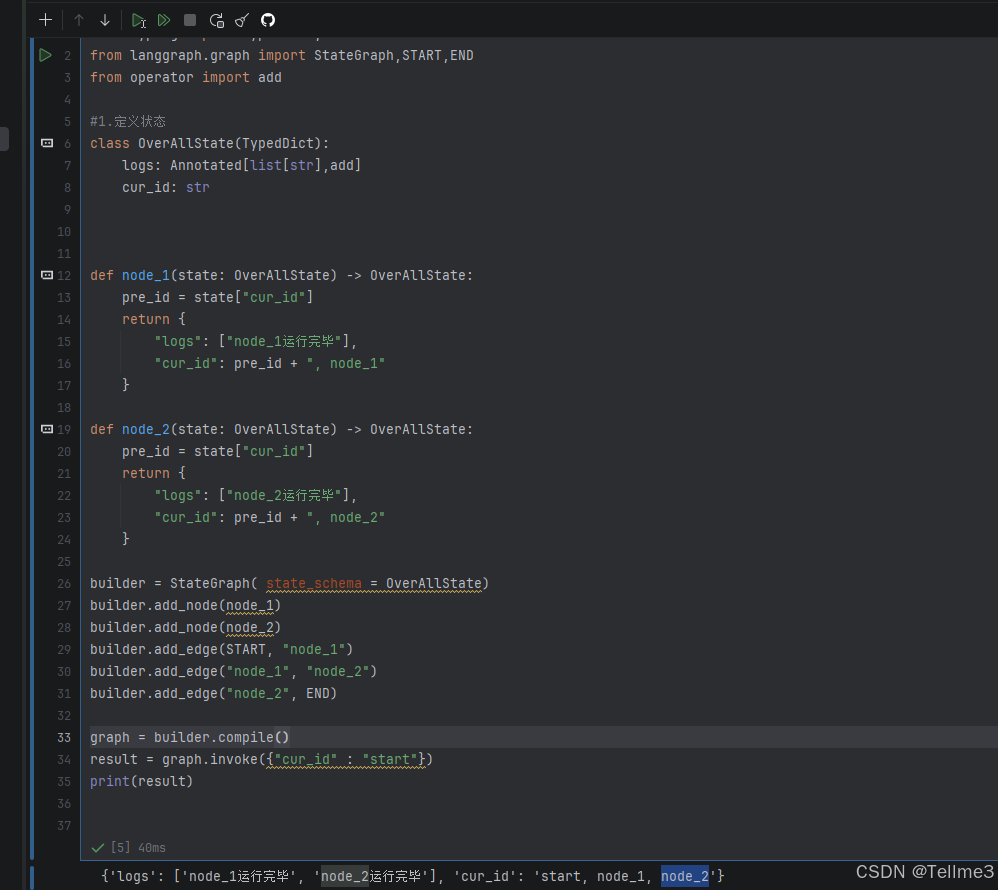

from typing import TypedDict, Annotated
from langgraph.graph import StateGraph,START,END
from operator import add

#1.定义状态
class OverAllState(TypedDict):
    logs: Annotated[list[str],add]
    cur_id: str



def node_1(state: OverAllState) -> OverAllState:
    pre_id = state["cur_id"]
    return {
        "logs": ["node_1运行完毕"],
        "cur_id": pre_id + ", node_1"
    }

def node_2(state: OverAllState) -> OverAllState:
    pre_id = state["cur_id"]
    return {
        "logs": ["node_2运行完毕"],
        "cur_id": pre_id + ", node_2"
    }

builder = StateGraph( state_schema = OverAllState)
builder.add_node(node_1)
builder.add_node(node_2)
builder.add_edge(START, "node_1")
builder.add_edge("node_1", "node_2")
builder.add_edge("node_2", END)

graph = builder.compile()
result = graph.invoke({"cur_id" : "start"})
print(result)

执行结果

{'logs': ['node_1运行完毕', 'node_2运行完毕'], 'cur_id': 'start, node_1, node_2'}
