class ScreenWindow : public QMainWindow {
public:
    ScreenWindow(QScreen* screen, int screenIndex, QWidget* contentWidget)
        : QMainWindow(nullptr)
        , m_screenIndex(screenIndex) {

        // EGLFS下必须使用无边框窗口
        setWindowFlags(Qt::FramelessWindowHint);

        // 设置中央控件
        setCentralWidget(contentWidget);

        // 【关键】先创建窗口句柄，然后设置屏幕
        createWinId();
        QWindow* window = windowHandle();
        if (window && screen) {
            window->setScreen(screen);
            LOG_INFO("ScreenWindow %d 绑定到屏幕: %s",
                     screenIndex, screen->name().toUtf8().constData());
        } else {
            LOG_WARN("ScreenWindow %d 未能绑定到屏幕", screenIndex);
        }

        // 设置背景
        setStyleSheet("background-color: #1a1a2e;");
    }

    void showScreen() {
        // EGLFS下使用showFullScreen()而非show()
        showFullScreen();
        LOG_INFO("ScreenWindow %d 已全屏显示", m_screenIndex);
    }

private:
    int m_screenIndex;
};

int main(int argc, char* argv[]) {
    // 环境配置
    qputenv("QT_QPA_PLATFORM", "eglfs");
    qputenv("QT_QPA_EGLFS_INTEGRATION", "eglfs_kms");
    qputenv("QT_QPA_EGLFS_KMS_ATOMIC", "0");
    qputenv("QT_QPA_EGLFS_KMS_CONFIG", "/etc/kms_dual.json");
    setenv("DISPLAY", "", 1);

    // 启用OpenGL上下文共享
    QCoreApplication::setAttribute(Qt::AA_ShareOpenGLContexts);

    // 日志系统
    Logger::instance()->setLevel(LOG_DEBUG);
    Logger::instance()->setConsoleOutput(true);
    Logger::instance()->setFileOutput("./logs/video_sdk.log", true);
    LOG_INFO("=== 双屏异显异触 Demo 启动 (EGLFS/KMS适配版) ===");



    // 创建QApplication
    QApplication app(argc, argv);

    // 获取屏幕列表
    auto screens = app.screens();
    if (screens.size() < 2) {
        LOG_ERROR("需要至少2个屏幕，当前只有 %zu 个", screens.size());
        return -1;
    }



    // 创建视频控件
    VideoWidget* mainVideo = new VideoWidget();
    mainVideo->setDisplayMode(1);
    mainVideo->setSource(0, VIDEO_SOURCE, 0, VIDEO_WIDTH, VIDEO_HEIGHT);
    mainVideo->setSource(1, VIDEO_SOURCE, 0, VIDEO_WIDTH, VIDEO_HEIGHT);

    VideoWidget* subVideo = new VideoWidget();
    subVideo->setDisplayMode(1);
    subVideo->setSource(0, VIDEO_SOURCE, 0, VIDEO_WIDTH, VIDEO_HEIGHT);
    subVideo->setSource(1, VIDEO_SOURCE, 0, VIDEO_WIDTH, VIDEO_HEIGHT);

    // 创建屏幕内容
    MainScreenWidget* mainContent = new MainScreenWidget(mainVideo);
    SubScreenWidget* subContent = new SubScreenWidget(subVideo);

    // 创建窗口并绑定屏幕
    ScreenWindow mainWindow(screens[0], 0, mainContent);
    mainWindow.showScreen();
    LOG_INFO("主屏窗口已创建并全屏显示");

    ScreenWindow subWindow(screens[1], 1, subContent);
    subWindow.showScreen();
    LOG_INFO("副屏窗口已创建并全屏显示");

QOpenGLWidget

QOpenGLWidget 内部依赖 OpenGL 渲染，而 QMainWindow/QWidget 默认是软件渲染（Raster）。EGLFS 严格禁止将 OpenGL 窗口与 Raster 窗口混合

两个 QOpenGLWidget 分布在两个顶层窗口中

即使只创建一个 QMainWindow，如果 VideoWidget（QOpenGLWidget）需要独立的 OpenGL 上下文和帧缓冲，EGLFS 也会将其视为额外的 OpenGL 窗口。

目前一个屏幕显示流，一个屏幕显示控件正常。

但两路都是显示视频流，即两路OPENGL，则存在问题。

两路GL ，在不同线程（各自的paintGL）里面，同时渲染。

单窗口跨双屏

每个屏幕自有drm buffer

BOM Management and PCB | Mermaid Chart

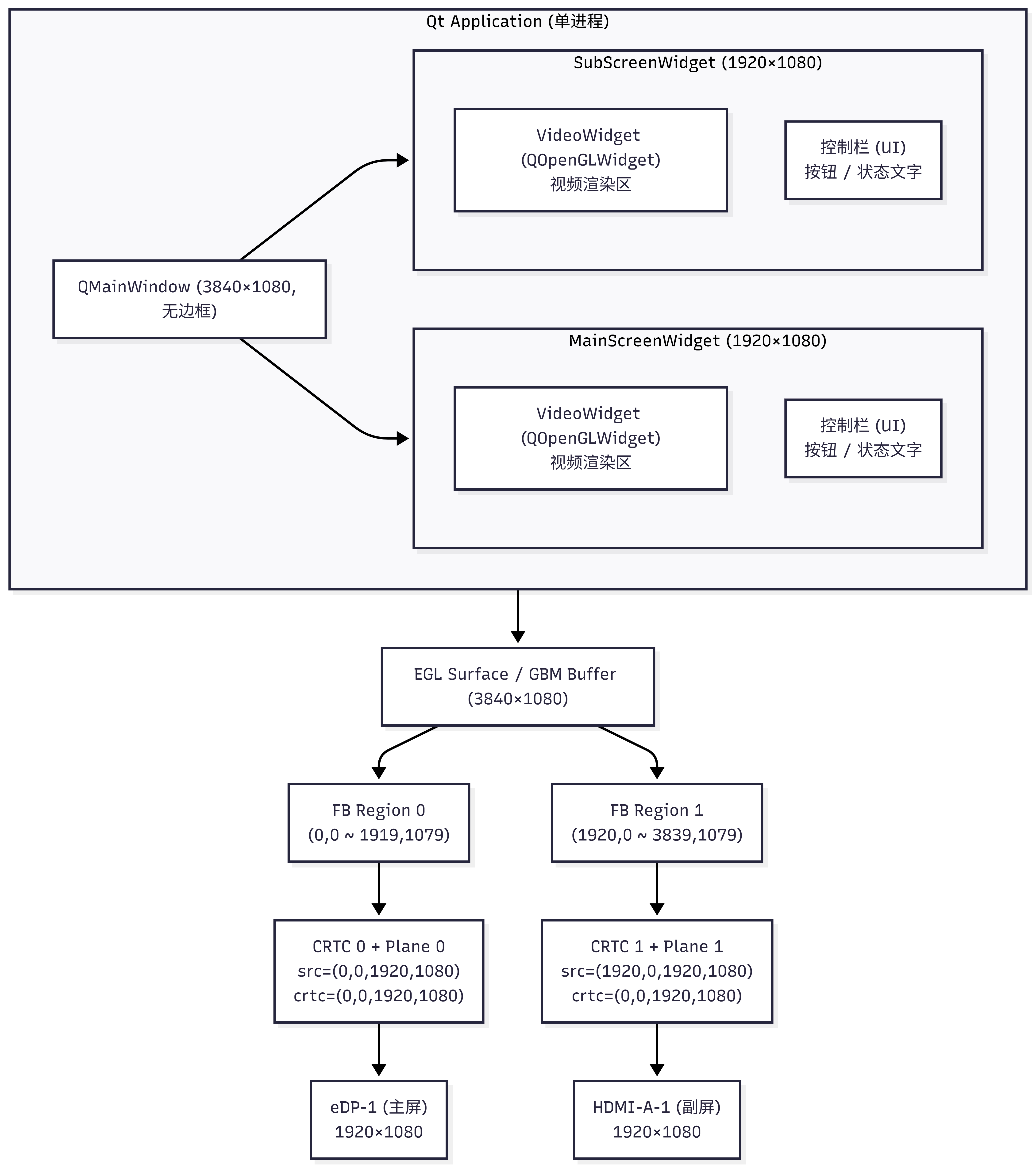

双屏共享一个DRM buffer

方案是：采用一个DRM BUFFER（两个屏幕之和大小的DRM buffer），视频源，渲染到此buffer的不同位置对应不同屏幕，然后实现异显。实际效果只有一个屏幕显示。

eglfs_kms 后端为每个屏幕创建独立的 EGL surface， DualScreenWindow 只绑定到了主屏的 1920×1080 surface。

/**
 * @file main_dual.cpp
 * @brief 双屏异显演示程序 - 共享纹理方案
 */

#include <QApplication>
#include <QMainWindow>
#include <QScreen>
#include <QVBoxLayout>
#include <QHBoxLayout>
#include <QPushButton>
#include <QLabel>
#include <QTimer>
#include <QWindow>
#include <QDebug>
#include <QThread>

#include "../src/display/VideoWidget_p.h"
#include "../src/utils/Logger.h"
#include "../src/utils/ThreadManager.h"
#include "../src/input/TouchManager.h"

// ============================================================
//  配置宏
// ============================================================

#define SCREEN_WIDTH   1920
#define SCREEN_HEIGHT  1080

#define TOUCH_DEVICE_1 "/dev/input/event4"
#define TOUCH_DEVICE_2 "/dev/input/event3"

#define VIDEO_SOURCE "/home/kylin/1600120060fps.ts"
#define VIDEO_WIDTH  1920
#define VIDEO_HEIGHT 1080

// ============================================================
//  主窗口
// ============================================================

class DualScreenWindow : public QMainWindow {
   // Q_OBJECT

public:
    DualScreenWindow(VideoWidget* video, QWidget* parent = nullptr)
        : QMainWindow(parent)
        , m_video(video) {

        setWindowFlags(Qt::FramelessWindowHint);
        setStyleSheet("background-color: #1a1a2e;");

        QWidget* central = new QWidget(this);
        setCentralWidget(central);

        QVBoxLayout* layout = new QVBoxLayout(central);
        layout->setContentsMargins(0, 0, 0, 0);
        layout->setSpacing(0);

        if (m_video) {
            m_video->setParent(central);
            layout->addWidget(m_video, 10);
        }

        QWidget* ctrlBar = createControlBar();
        ctrlBar->setFixedHeight(100);
        ctrlBar->setStyleSheet("background-color: rgba(42, 42, 62, 200);");
        layout->addWidget(ctrlBar);

        LOG_INFO("DualScreenWindow created");
    }

private:
    QWidget* createControlBar() {
        QWidget* ctrlBar = new QWidget(this);

        QHBoxLayout* ctrlLayout = new QHBoxLayout(ctrlBar);
        ctrlLayout->setContentsMargins(50, 15, 50, 15);
        ctrlLayout->setSpacing(20);

        // 通道切换按钮
        QPushButton* btnSwitch = new QPushButton("切换通道", this);
        btnSwitch->setFixedSize(120, 45);
        btnSwitch->setStyleSheet(
            "QPushButton {"
            "   background-color: #3a5a8e;"
            "   color: white;"
            "   font-size: 16px;"
            "   border-radius: 6px;"
            "}"
            "QPushButton:pressed {"
            "   background-color: #5a7aae;"
            "}"
        );
        ctrlLayout->addWidget(btnSwitch);

        ctrlLayout->addStretch();

        m_statusLabel = new QLabel("双屏运行中 | 共享纹理", this);
        m_statusLabel->setStyleSheet(
            "color: #88cc88;"
            "font-size: 18px;"
            "font-weight: bold;"
            "background-color: transparent;"
        );
        ctrlLayout->addWidget(m_statusLabel);

        ctrlLayout->addStretch();

        QPushButton* shutdownBtn = new QPushButton("关 机", this);
        shutdownBtn->setFixedSize(100, 45);
        shutdownBtn->setStyleSheet(
            "QPushButton {"
            "   background-color: #cc4444;"
            "   color: white;"
            "   font-size: 16px;"
            "   border-radius: 6px;"
            "}"
            "QPushButton:pressed {"
            "   background-color: #aa2222;"
            "}"
        );
        ctrlLayout->addWidget(shutdownBtn);

        connect(btnSwitch, &QPushButton::clicked, [this]() {
            LOG_INFO("切换通道");
            if (m_video) {
                static int ch = 0;
                ch = (ch + 1) % 4;
                m_video->setSource(ch, VIDEO_SOURCE, 0, VIDEO_WIDTH, VIDEO_HEIGHT);
                m_statusLabel->setText(QString("双屏运行中 | 通道%1").arg(ch));
            }
        });

        connect(shutdownBtn, &QPushButton::clicked, []() {
            LOG_INFO("关机按钮被点击");
            // system("sudo poweroff");
        });

        return ctrlBar;
    }

private:
    VideoWidget* m_video;
    QLabel* m_statusLabel;
};
// main_dual.cpp 添加

// ============================================================
//  main
// ============================================================

int main(int argc, char* argv[]) {
    // 环境配置
    qputenv("QT_QPA_PLATFORM", "eglfs");
    qputenv("QT_QPA_EGLFS_INTEGRATION", "eglfs_kms");
    qputenv("QT_QPA_EGLFS_KMS_ATOMIC", "0");
    qputenv("QT_QPA_EGLFS_KMS_CONFIG", "/etc/kms_dual.json");
    //setenv("DISPLAY", "", 1);

    QCoreApplication::setAttribute(Qt::AA_ShareOpenGLContexts);

    Logger::instance()->setLevel(LOG_DEBUG);
    Logger::instance()->setConsoleOutput(true);
    Logger::instance()->setFileOutput("./logs/video_sdk.log", true);
    LOG_INFO("=== 双屏异显 Demo 启动 (共享纹理方案) ===");

    ThreadManager::instance()->setDefaultConfig();
    ThreadManager::instance()->applyCurrentThread("main");

    QApplication app(argc, argv);

    auto screens = app.screens();
    if (screens.size() < 2) {
        LOG_ERROR("需要至少2个屏幕，当前只有 %zu 个", screens.size());
        return -1;
    }

    int screenWidth = screens[0]->geometry().width();
    int screenHeight = screens[0]->geometry().height();
    int totalWidth = screenWidth * 2;

    LOG_INFO("屏幕0: %s %dx%d", screens[0]->name().toUtf8().constData(),
             screenWidth, screenHeight);
    LOG_INFO("屏幕1: %s %dx%d", screens[1]->name().toUtf8().constData(),
             screenWidth, screenHeight);
    LOG_INFO("虚拟桌面尺寸: %dx%d", totalWidth, screenHeight);



    // 创建VideoWidget
    VideoWidget* video = new VideoWidget();

    // 启用双屏模式
    video->setDualScreenMode(true, screenWidth, screenHeight);

    // 设置视频源（只用通道0）
    video->setSource(0, VIDEO_SOURCE, 0, VIDEO_WIDTH, VIDEO_HEIGHT);
    video->setSource(1, VIDEO_SOURCE, 0, VIDEO_WIDTH, VIDEO_HEIGHT);
    video->setSource(2, VIDEO_SOURCE, 0, VIDEO_WIDTH, VIDEO_HEIGHT);
    video->setSource(3, VIDEO_SOURCE, 0, VIDEO_WIDTH, VIDEO_HEIGHT);

    // 创建窗口
    DualScreenWindow window(video);
    window.setMinimumSize(totalWidth, screenHeight);
    window.showFullScreen();
    LOG_INFO("双屏窗口已创建并全屏显示");


    // 启动视频
    video->start();
    LOG_INFO("视频流已启动");



    LOG_INFO("触摸设备已注册");
    LOG_INFO("=== 系统运行中，按 Ctrl+C 退出 ===");

    int ret = app.exec();

    video->stop();
    LOG_INFO("=== 程序正常退出 ===");

    return ret;
}

//#include "main_dual.moc"

DualScreenWindow (QMainWindow)
├── centralWidget (QWidget)
│   └── QVBoxLayout (margins=0, spacing=0)
│       ├── VideoWidget (QOpenGLWidget, stretch=10)
│       └── controlBar (QWidget, height=100, bg=rgba(42,42,62,200))
│           └── QHBoxLayout (margins=50,15,50,15, spacing=20)
│               ├── btnSwitch (QPushButton, "切换通道", 120×45, #3a5a8e)
│               ├── Stretch
│               ├── statusLabel (QLabel, "双屏运行中 | 共享纹理", #88cc88, 18px bold)
│               ├── Stretch
│               └── btnShutdown (QPushButton, "关 机", 100×45, #cc4444)

双QOpenGLWindow

即每个屏幕用一个 QOpenGLWindow去完成显示，则是OK的。每个有自己的opengl接口。

但我们需要将功能封装成widget。不能继承自这个类。

继承 QOpenGLWindow	继承 QOpenGLWidget
是一个 `QWindow`，不是 `QWidget`	是一个 `QWidget`
不能直接添加 QPushButton/QLabel 等控件	可以添加子控件
适合纯 OpenGL 渲染，无 UI 叠加	适合视频 + UI 叠加
需要单独 `show()`	可以嵌入到 QWidget 布局中

控制窗口

// ============================================================
// 8. 控制窗口 (HDMI2)
// ============================================================
class ControlWindow : public QOpenGLWindow
{
public:
    ControlWindow(QScreen* screen) {
        setScreen(screen);
        setGeometry(0, 0, 1920, 1080);

        btnColors[0] = QColor(100, 100, 200);
        btnColors[1] = QColor(100, 200, 100);
        btnColors[2] = QColor(200, 100, 100);
        bgColor = QColor(30, 30, 50);
    }

protected:
    void paintGL() override {
        QPainter painter(this);
        painter.setRenderHint(QPainter::Antialiasing);

        painter.fillRect(0, 0, 1920, 1080, bgColor);

        painter.setPen(Qt::white);
        painter.setFont(QFont("Arial", 36, QFont::Bold));
        painter.drawText(50, 80, "HDMI2 - 控制面板");

        rectA = QRect(100, 200, 200, 80);
        rectB = QRect(400, 200, 200, 80);
        rectC = QRect(700, 200, 200, 80);

        drawButton(painter, rectA, "按钮A", btnColors[0]);
        drawButton(painter, rectB, "按钮B", btnColors[1]);
        drawButton(painter, rectC, "按钮C", btnColors[2]);

        painter.setPen(Qt::yellow);
        painter.setFont(QFont("Arial", 24));
        painter.drawText(50, 400,
            QString("触摸: (%1, %2)  %3")
            .arg(touchX).arg(touchY)
            .arg(touching ? "按下" : "释放"));

        colorRect1 = QRect(100, 500, 120, 80);
        colorRect2 = QRect(300, 500, 120, 80);
        colorRect3 = QRect(500, 500, 120, 80);
        painter.fillRect(colorRect1, Qt::red);
        painter.fillRect(colorRect2, Qt::green);
        painter.fillRect(colorRect3, Qt::blue);
        painter.setPen(Qt::white);
        painter.drawRect(colorRect1);
        painter.drawRect(colorRect2);
        painter.drawRect(colorRect3);

        painter.setFont(QFont("Arial", 16));
        painter.drawText(colorRect1, Qt::AlignCenter, "红色");
        painter.drawText(colorRect2, Qt::AlignCenter, "绿色");
        painter.drawText(colorRect3, Qt::AlignCenter, "蓝色");

视频窗口

// ============================================================
// 7. 视频窗口 (HDMI1)
// ============================================================
class VideoWindow : public QOpenGLWindow
{
public:
    VideoWindow(QScreen* screen, int idx)
        : screenIdx(idx) {
        setScreen(screen);
        setGeometry(0, 0, 1920, 1080);

        for (int i = 0; i < 2; i++) {
            textures[i] = nullptr;
            active_streams[i] = false;
        }

        display_mode = DISPLAY_MODE_1CH;
        active_streams[0] = true;
        active_count = 1;

        sim_cap = new SimCapture();
    }

    ~VideoWindow() {
        delete sim_cap;
        for (int i = 0; i < 2; i++) {
            if (textures[i]) delete textures[i];
        }
    }

    void onTouch(int x, int y, bool pressed) {
        touchX = x;
        touchY = y;
        touching = pressed;

        if (pressed) {
            if (btn_mode.rect.contains(x, y)) {
                display_mode = (display_mode == DISPLAY_MODE_1CH) ?
                               DISPLAY_MODE_2CH : DISPLAY_MODE_1CH;
                active_count = (display_mode == DISPLAY_MODE_1CH) ? 1 : 2;
                active_streams[0] = true;
                active_streams[1] = (display_mode == DISPLAY_MODE_2CH);
                LOG("切换模式: %d路", active_count);
            }
        }
        update();
    }

    void processFrame() {
        for (int i = 0; i < active_count; i++) {
            SimFrame* frame = sim_cap->get_frame(i + 1);
            if (!frame) continue;

            FrameLatency lat;
            lat.frame_id = ++frame_id;
            lat.stream_id = i + 1;
            lat.kernel_ts = frame->ts;
            lat.capture_ts = get_ns();
            lat.rga_start_ts = lat.capture_ts + 500000;
            lat.rga_end_ts = lat.rga_start_ts + 1500000;
            lat.upload_start_ts = lat.rga_end_ts + 100000;
            lat.upload_end_ts = lat.upload_start_ts + 600000;
            lat.render_start_ts = lat.upload_end_ts + 200000;
            lat.render_end_ts = lat.render_start_ts + 1000000;
            lat.display_done_ts = lat.render_end_ts + 3000000;

            if (!textures[i]) {
                textures[i] = new QOpenGLTexture(QOpenGLTexture::Target2D);
                textures[i]->setSize(SDI_WIDTH, SDI_HEIGHT);
                textures[i]->setFormat(QOpenGLTexture::RGBA8_UNorm);
                textures[i]->allocateStorage();
            }
            textures[i]->setData(QOpenGLTexture::RGBA, QOpenGLTexture::UInt8,
                                 frame->data);

            stats[i].add(lat);
            last_latency[i] = lat;

            sim_cap->release_frame(frame);
        }
        update();
    }

    StreamStats* getStats(int idx) { return &stats[idx]; }
    int getActiveCount() const { return active_count; }
    int getMode() const { return display_mode; }

protected:
    void paintGL() override {
        QPainter painter(this);
        painter.setRenderHint(QPainter::Antialiasing);

        painter.fillRect(0, 0, 1920, 1080, QColor(20, 20, 30));

        if (active_count == 1) {
            drawVideo(painter, 0, 0, 1920, 1080, 0);
            drawStatsPanel(painter, 1450, 60, 420, 400, 0);
        } else {
            drawVideo(painter, 0, 0, 940, 900, 0);
            drawVideo(painter, 980, 0, 940, 900, 1);
            drawStatsPanel(painter, 10, 920, 1900, 150, -1);
        }

        drawControls(painter);

        if (touching) {
            painter.setBrush(QColor(255, 255, 255, 180));
            painter.setPen(Qt::NoPen);
            painter.drawEllipse(touchX - 20, touchY - 20, 40, 40);
        }
    }

禁用QT的触摸坐标。
