OpenCV C++形状匹配

这个程序使用OpenCV shape模块进行形状匹配。

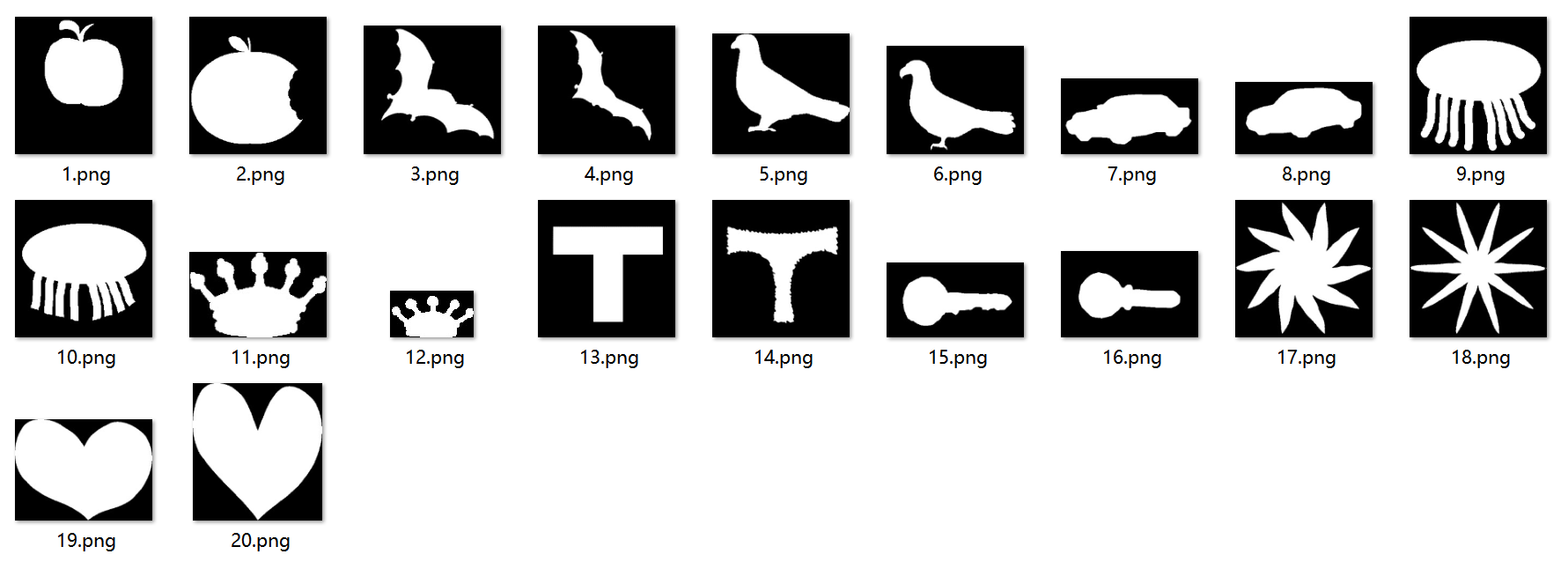

数据库里有20张图片：

可以很容易看出来每两张图片是一组匹配的形状。

大概就是这个意思：用第一张图片查询时会找到第二张图片。

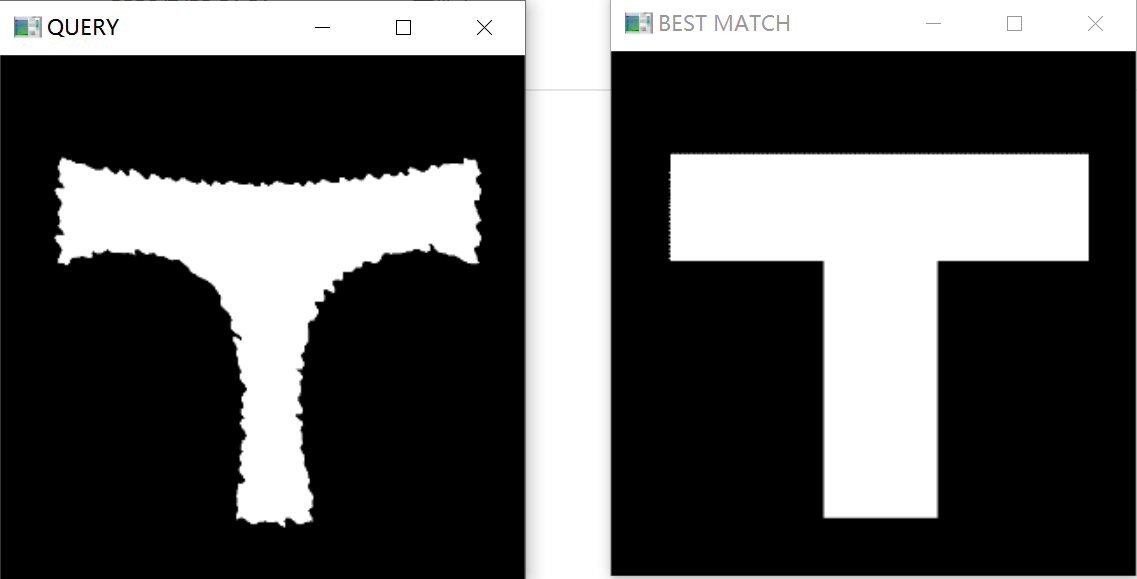

现在查询左边的第14张图片,可以看到最佳匹配(Best Match)的是右边显示的第13张图片。

代码：

#include "opencv2/shape.hpp"
#include "opencv2/imgcodecs.hpp"
#include "opencv2/highgui.hpp"
#include "opencv2/imgproc.hpp"
#include <iostream>
#include <string>

static vector<Point> simpleContour( const Mat& currentQuery, int n=300 )
{
    vector<vector<Point> > _contoursQuery;
    vector <Point> contoursQuery;
    findContours(currentQuery, _contoursQuery, RETR_LIST, CHAIN_APPROX_NONE);
    for (size_t border=0; border<_contoursQuery.size(); border++)
    {
        for (size_t p=0; p<_contoursQuery[border].size(); p++)
        {
            contoursQuery.push_back( _contoursQuery[border][p] );
        }
    }

    int dummy=0;
    for (int add=(int)contoursQuery.size()-1; add<n; add++)
    {
        contoursQuery.push_back(contoursQuery[dummy++]);
    }

    cv::randShuffle(contoursQuery);
    vector<Point> cont;
    for (int i=0; i<n; i++)
    {
        cont.push_back(contoursQuery[i]);
    }
    return cont;
}

int main()
{
    int indexQuery = 14;

    string path = "data/shape_sample/";

    cv::Ptr <cv::ShapeContextDistanceExtractor> mysc = cv::createShapeContextDistanceExtractor();

    Size sz2Sh(300,300);
    stringstream queryName;
    queryName<<path<<indexQuery<<".png";
    Mat query=imread(queryName.str(), IMREAD_GRAYSCALE);
    Mat queryToShow;
    resize(query, queryToShow, sz2Sh, 0, 0, INTER_LINEAR_EXACT);
    imshow("QUERY", queryToShow);

    vector<Point> contQuery = simpleContour(query);
    int bestMatch = 0;
    float bestDis=FLT_MAX;
    for ( int ii=1; ii<=20; ii++ )
    {
        if (ii==indexQuery) continue;
        stringstream iiname;
        iiname<<path<<ii<<".png";

        Mat iiIm=imread(iiname.str(), 0);
        Mat iiToShow;
        resize(iiIm, iiToShow, sz2Sh, 0, 0, INTER_LINEAR_EXACT);
        vector<Point> contii = simpleContour(iiIm);
        float dis = mysc->computeDistance( contQuery, contii );
        if ( dis<bestDis )
        {
            bestMatch = ii;
            bestDis = dis;
        }
    }
    stringstream bestname;
    bestname<<path<<bestMatch<<".png";
    Mat iiIm=imread(bestname.str(), 0);
    Mat bestToShow;
    resize(iiIm, bestToShow, sz2Sh, 0, 0, INTER_LINEAR_EXACT);
    imshow("BEST MATCH", bestToShow);
    moveWindow("BEST MATCH", sz2Sh.width+50,0);
    waitKey();

    return 0;
}
