Sentinel-dashboard安装，sentinel版本官方地址：安装包下载地址——Releases · alibaba/Sentinel · GitHub，我们是SpringCloud Alibaba 2022，选择匹配的sentinel版本1.8.6。版本说明 · alibaba/spring-cloud-alibaba Wiki · GitHub

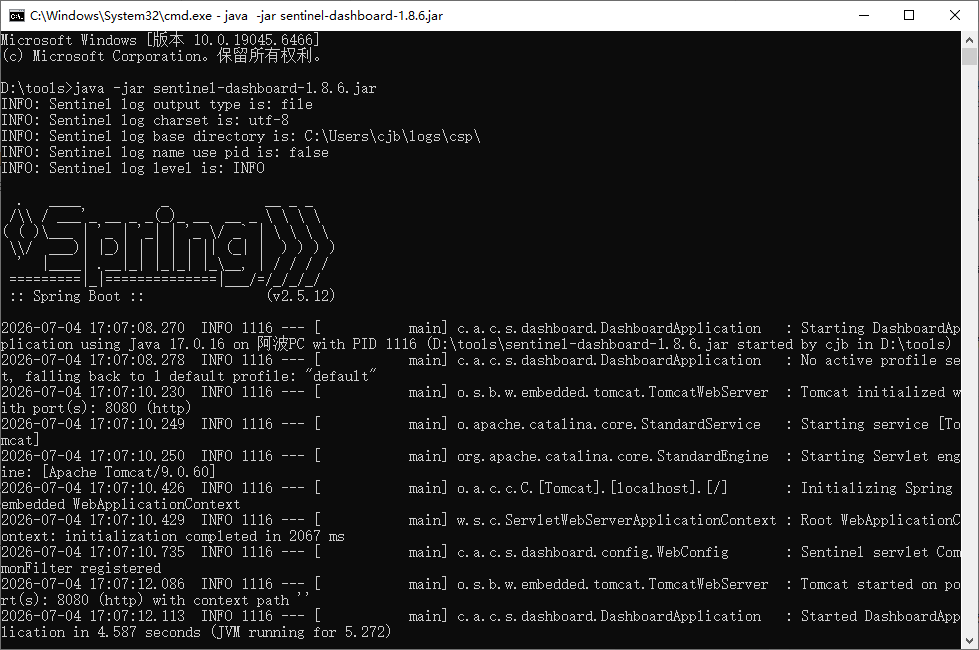

在windows系统上启动服务

java -jar sentinel-dashboard-1.8.6.jar

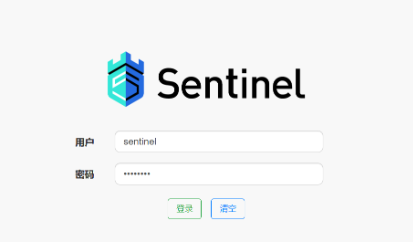

启动成功后访问网址(默认端口8080)：http://localhost:8080/#/dashboard/ ，默认的用户名和密码：sentinel/sentinel

三、项目添加jar依赖与配置

说明：spring-cloud-alibaba-starters的jar包里包含spring-cloud-starter-alibaba-sentinel的jar，无需指定版本。

补充-父项目pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>spring-cloud-alibaba</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>pom</packaging>
    <modules>
        <module>goods-service</module>
        <module>order-service</module>
        <module>gateway-service</module>
    </modules>

    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>

        <spring-boot.version>3.0.13</spring-boot.version>
        <spring-cloud.version>2022.0.2</spring-cloud.version>
        <spring-cloud-starter-bootstrap.version>3.1.5</spring-cloud-starter-bootstrap.version>
        <spring-cloud-alibaba.version>2022.0.0.0</spring-cloud-alibaba.version>

    </properties>

    <dependencyManagement>
        <dependencies>
            <!-- Spring Boot 3.x -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-parent</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- Spring Cloud 2022.x -->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- Spring Cloud Bootstrap 3.x -->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-starter-bootstrap</artifactId>
                <version>${spring-cloud-starter-bootstrap.version}</version>
            </dependency>
            <!-- Alibaba Cloud 2.x -->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <!-- Nacos注册中心 -->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
            </dependency>

            <!-- Nacos配置中心 -->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
                <version>${spring-cloud-alibaba.version}</version>
            </dependency>

            <!-- Spring Boot 3.x -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-actuator</artifactId>
                <version>${spring-boot.version}</version>
            </dependency>
            <!-- Spring Boot 3.x -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-test</artifactId>
                <version>${spring-boot.version}</version>
            </dependency>
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>1.18.30</version>
            </dependency>

            <!-- RocketMQ -->
            <dependency>
                <groupId>org.apache.rocketmq</groupId>
                <artifactId>rocketmq-spring-boot-starter</artifactId>
                <version>2.3.4</version>
                <scope>compile</scope>
                <exclusions>
                    <!-- 排查低版本冲突 -->
                    <exclusion>
                        <groupId>org.apache.rocketmq</groupId>
                        <artifactId>rocketmq-client</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>

            <dependency>
                <groupId>org.apache.rocketmq</groupId>
                <artifactId>rocketmq-client</artifactId>
                <version>5.3.1</version>
            </dependency>


       </dependencies>
    </dependencyManagement>

</project>

3.1、jar依赖

        <!-- Sentinel -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>

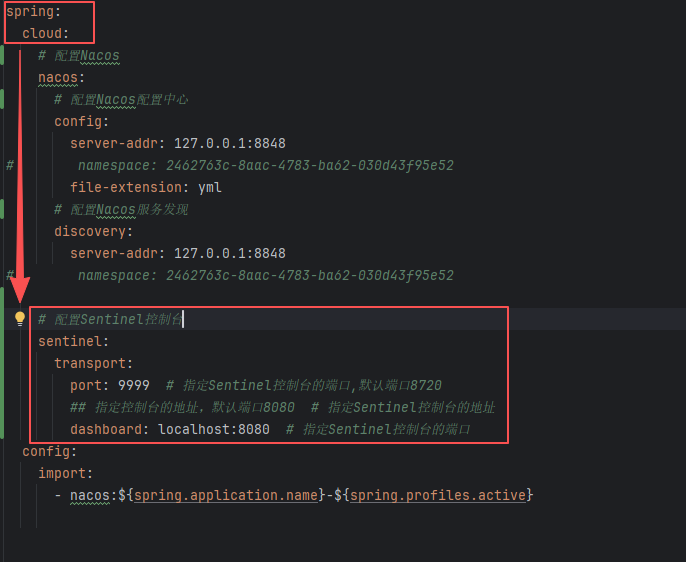

3.2、sentinel控制台配置

applicaiton.xml添加sentinel的配置，sentinel的端口号默认是8720，可以手动指定。

spring:
  cloud:
    # 配置Sentinel控制台
    sentinel:
      transport:
        port: 9999  # 指定Sentinel控制台的端口,默认端口8720
        ## 指定控制台的地址，默认端口8080  # 指定Sentinel控制台的地址
        dashboard: localhost:8080  # 指定Sentinel控制台的端口
