A2UI Composer

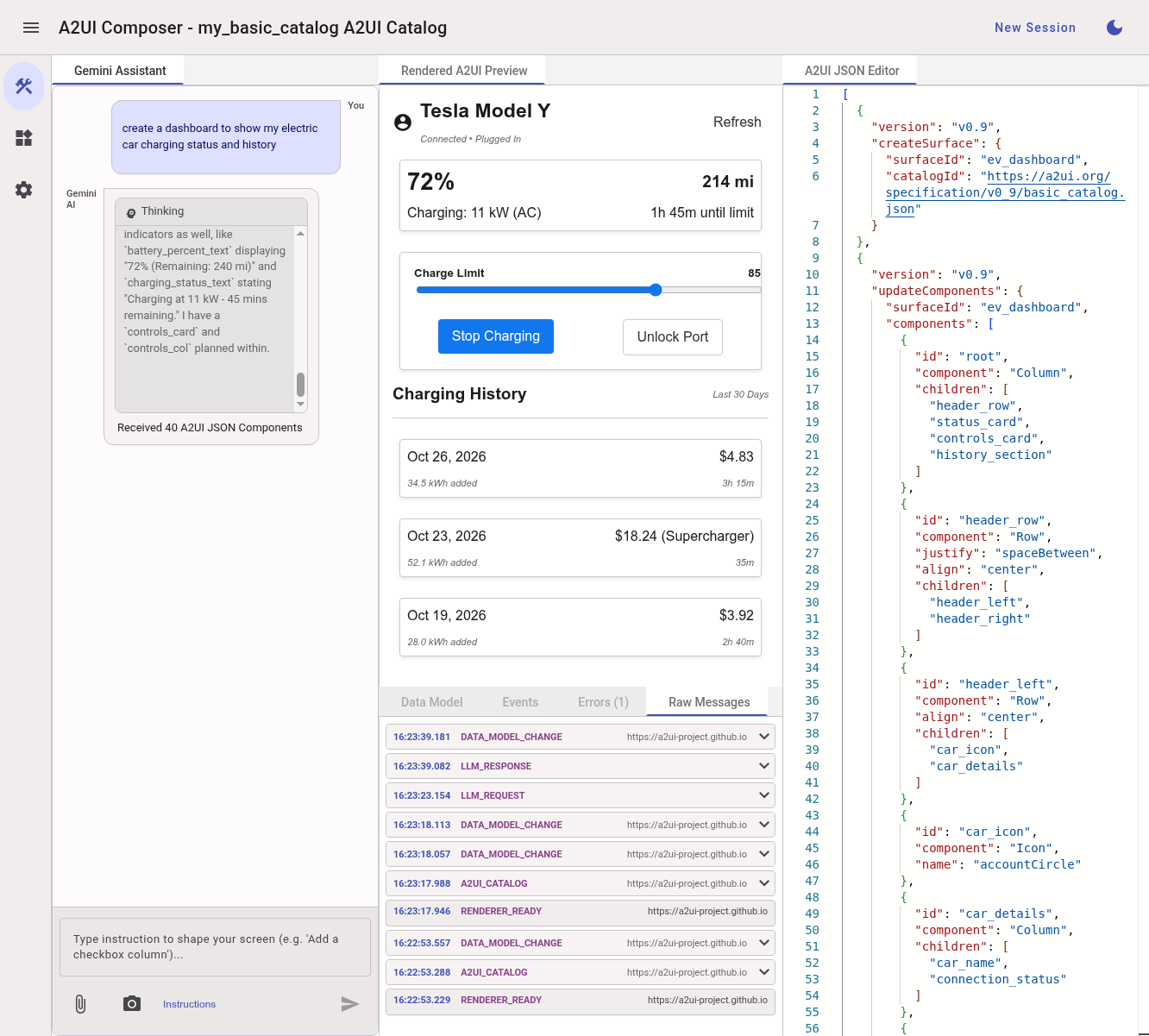

Try building A2UI widgets interactively with the A2UI Composer. A2UI Composer Workspace

  1. Navigate to the A2UI Composer

  2. By default, you'll be using the Basic catalog provided by an Angular-based renderer

  3. Use the Gemini chat to start building an A2UI interface! (Note: This requires a Gemini API key. See below)

Using the Composer UI

The Composer workspace is split into several interactive panels to assist in developing and debugging A2UI surfaces:

  • Gemini Assistant: A chat interface powered by Gemini. You can use natural language prompts to ask Gemini to generate new layouts, refine the existing JSON, or modify visual attributes.
  • You can upload an attachment (a mock, for example) by clicking the paper clip icon paper clip icon.

  • You can include a screenshot of the current A2UI interface by clicking the camera icon camera icon.

  • Rendered A2UI Preview: Displays the live visual preview of the active component.

  • A2UI JSON Editor: Displays the raw JSON payload defining the UI structure and component hierarchy. You can edit this directly to instantly update the rendered preview.

  • The editor has tooltips on hover, showing the description of the A2UI element.

  • If you have A2UI JSON from another source, you can paste it into this panel. You can right-click to format the JSON if you want.

  • Debug & Inspection Tabs (Bottom):

    • Data Model: Inspects and modifies the runtime state/data values bound to the UI components. Changes here propagate to the preview, and user inputs in the preview update this model.
    • Events: Logs user-interaction events (e.g., clicks, inputs, or selections) dispatched by the rendered components.
    • Errors: Displays errors from rendering, JSON parsing, or API failures.
    • Raw Messages: Shows the communication between the Composer and the renderer, as well as interactions with Gemini. (See more below.)

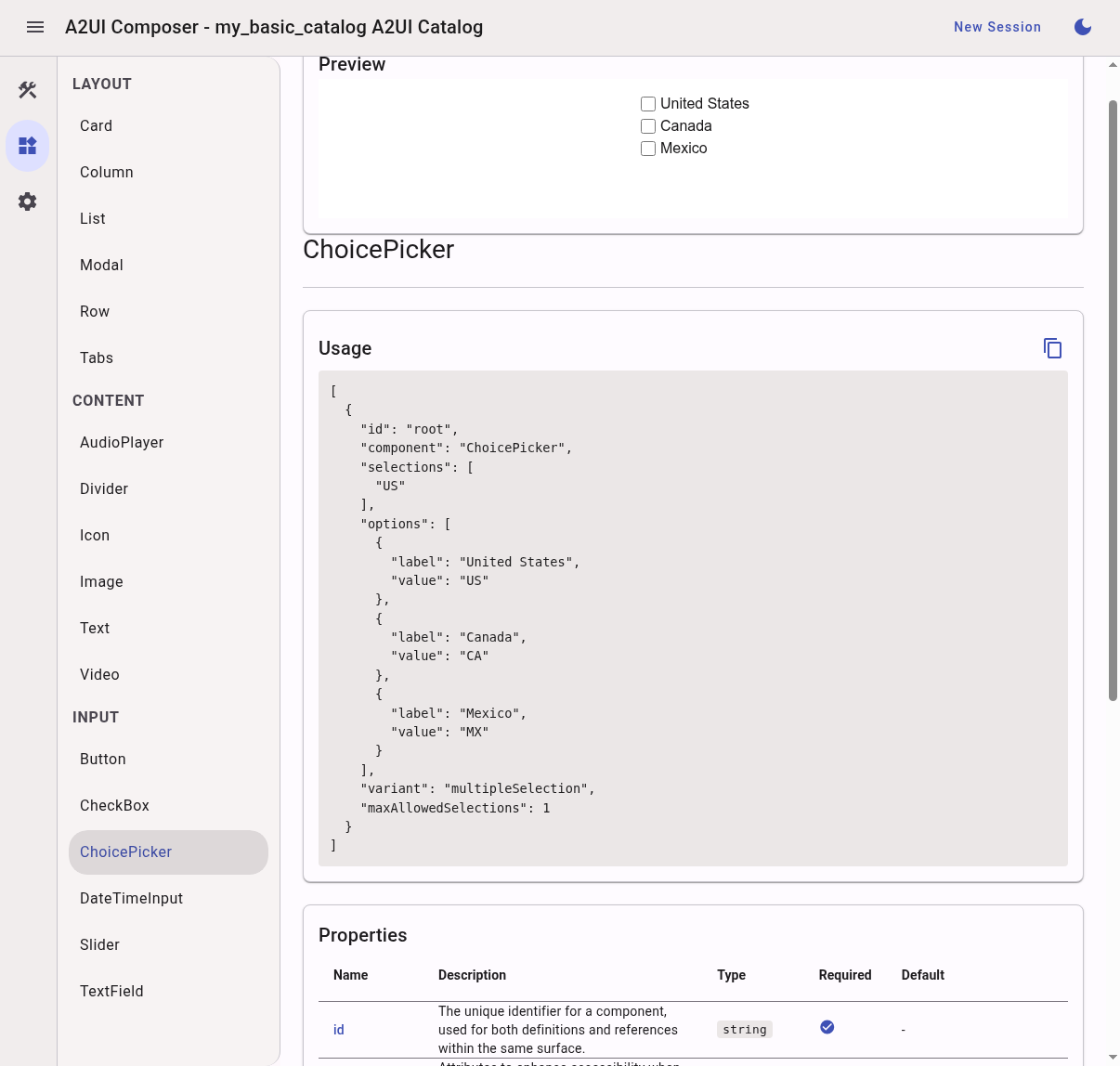

screenshot of a component with A2UI usage and properties

The Components gallery allows you to browse through all the components which are provided in the current A2UI catalog. Each component has an example rendered, along with the A2UI JSON to produce that rendering. Use the copy icon copy icon at the top of the Usage panel to copy the full A2UI JSON for this component.

At the bottom of the page is a table listing all the properties of the component with descriptions, type, and indicating whether the property is required or not.

Settings

Renderer Application

The settings page allows you to change the renderer application being used. At this time, there are three preloaded renderer applications:

  • Angular Basic Catalog
  • Lit Basic Catalog
  • React Basic Catalog

If you are building another renderer app, you can select "Custom" from the dropdown, and put the URL in the text box. (For instructions on building a renderer app, see A2UI Composer Integration).

Gemini API Key

This is also where you can enter a Gemini API key, enabling use of the Gemini chat feature.

To obtain an API key:

  1. Go to Google AI Studio and sign in with your Google account.
  2. Click Create API key.
  3. Select or create a Google Cloud project when prompted, then click Create key.
  4. Save your key in a secure location!

Note that the A2UI Composer encrypts your key and stores it locally in your browser's secure database using the Web Crypto API. Neither Google nor anyone else has access to this key.

Work in Progress

The A2UI team is actively working on the following improvements:

  • Latency reduction: Improving latency within Gemini-assisted workflows.
  • Visual understanding: Updating Gemini-assisted workflows to improve visual understanding of already rendered surfaces.

Raw Messages

The messages which flow between the Composer and the renderer can help with troubleshooting and to gain a better understanding of what's going on. These messages include:

  • RENDERER_READY: Sent by the renderer once it has fully bootstrapped.
  • A2UI_CATALOG: Sent by the renderer (upon request from the Composer). Contains the full A2UI catalog supported by the renderer.
  • COMPONENT_USAGES: Sent by the renderer (upon request from the Composer), containing the data to support the Component Gallery page.

Whenever there is a change to the A2UI component's data model, the DATA_MODEL_CHANGE message is captured, showing the updateDataModel message which would be sent back to the agent.

Additionally, when using the Gemini chat feature:

  • LLM_REQUEST: Shows the full request (including the system prompt) sent to the LLM.
  • LLM_RESPONSE: Shows the full response received from the LLM.
